Name: IXFH54N65X3
Brand: IXYS
SKU: IXFH54N65X3
Price: 12.36 USD
Availability: InStock

REF: IXFH54N65X3 IXYS

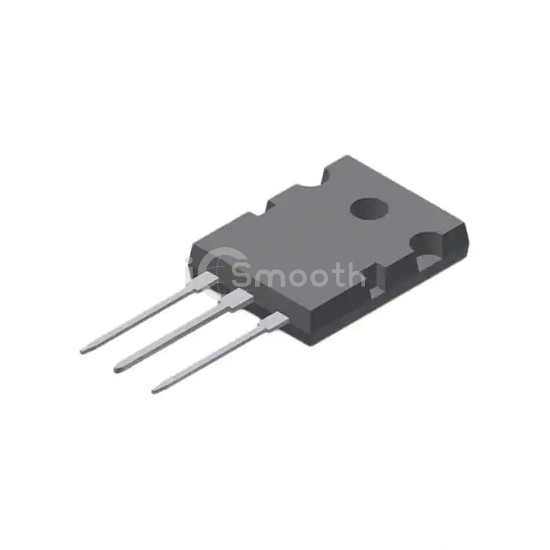

IXFH54N65X3

MOSFET 54A 650V X3 TO247

IXFH54N65X3 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET 54A 650V X3 TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 580

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	54A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	59mOhm @ 27A, 10V
Vgs(th) (Max) @ Id	5.2V @ 4mA
Gate Charge (Qg) (Max) @ Vgs	49 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3360 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	625W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247 (IXFH)
Package / Case	TO-247-3
