Name: IXFH120N25X3
Brand: IXYS
SKU: IXFH120N25X3
Price: 13.44 USD
Availability: InStock

REF: IXFH120N25X3 IXYS

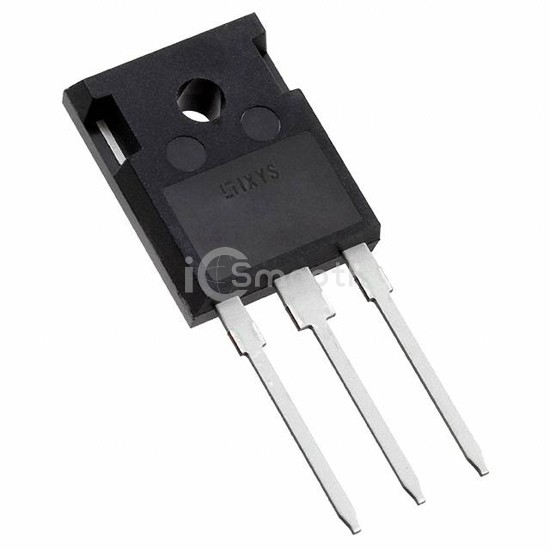

IXFH120N25X3

MOSFET N-CH 250V 120A TO247

IXFH120N25X3 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 250V 120A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 5,991

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	250 V
Current - Continuous Drain (Id) @ 25°C	120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	12mOhm @ 60A, 10V
Vgs(th) (Max) @ Id	4.5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs	122 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7870 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	520W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247 (IXTH)
Package / Case	TO-247-3
