Name: IXFC36N50P
Brand: IXYS
SKU: IXFC36N50P
Availability: InStock

REF: IXFC36N50P IXYS

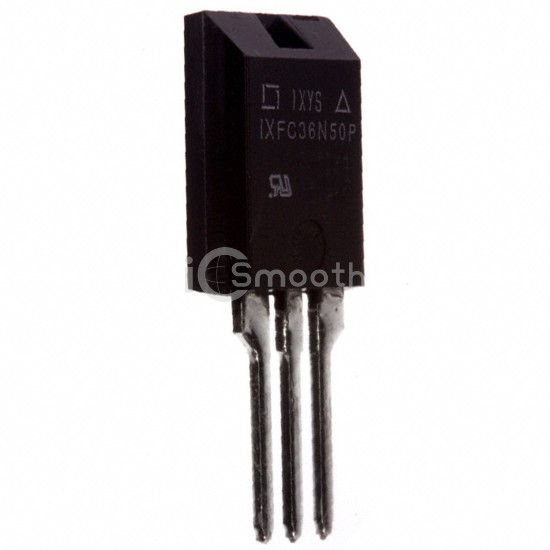

IXFC36N50P

MOSFET N-CH 500V 19A ISOPLUS220

IXFC36N50P is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 500V 19A ISOPLUS220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case ISOPLUS220™.

Datasheet Request a Quote

In Stock: 1,638

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	19A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	190mOhm @ 18A, 10V
Vgs(th) (Max) @ Id	5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs	93 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	5500 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	156W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	ISOPLUS220™
Package / Case	ISOPLUS220™
