Name: IXFC16N50P
Brand: IXYS
SKU: IXFC16N50P
Availability: InStock

REF: IXFC16N50P IXYS

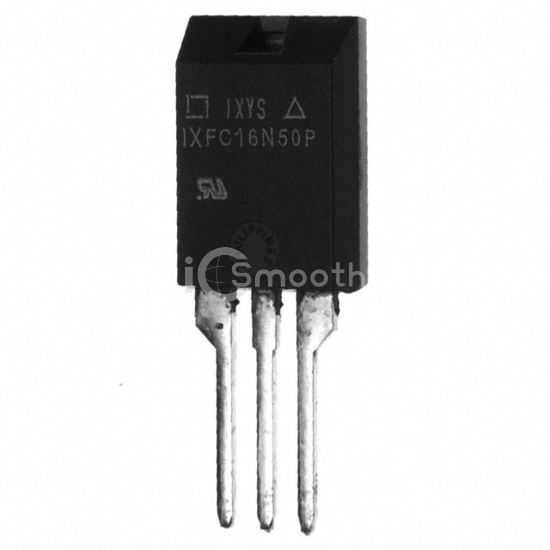

IXFC16N50P

MOSFET N-CH 500V 10A ISOPLUS220

IXFC16N50P is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 500V 10A ISOPLUS220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case ISOPLUS220™.

Datasheet Request a Quote

In Stock: 8,885

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	10A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	450mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	5.5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs	43 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2250 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	125W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	ISOPLUS220™
Package / Case	ISOPLUS220™
