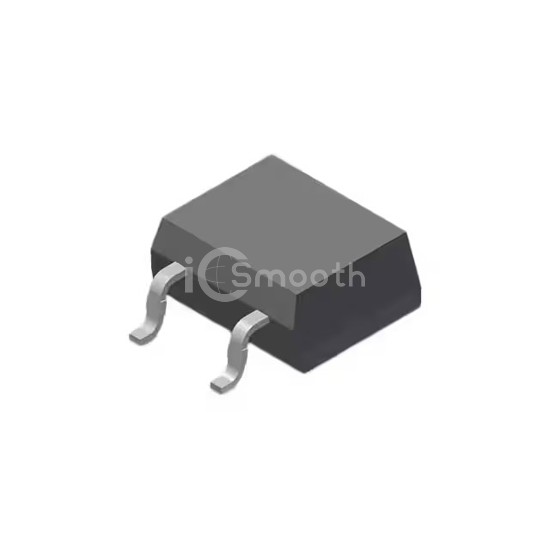

IXFA34N65X3

MOSFET 34A 650V X3 TO263

IXFA34N65X3 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET 34A 650V X3 TO263. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 4,289

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	34A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	100mOhm @ 17A, 10V
Vgs(th) (Max) @ Id	5.2V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs	29 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2025 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	446W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263 (IXFA)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
