Name: IXFA20N85XHV
Brand: IXYS
SKU: IXFA20N85XHV
Price: 8.49 USD
Availability: InStock

REF: IXFA20N85XHV IXYS

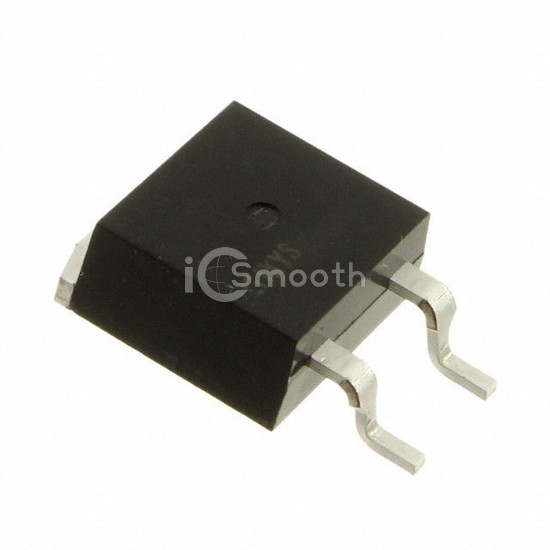

IXFA20N85XHV

MOSFET N-CH 850V 20A TO263

IXFA20N85XHV is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 850V 20A TO263. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 3,451

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	850 V
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	330mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id	5.5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs	63 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1660 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	540W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263HV
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
