IXEL40N400

In Stock: 194

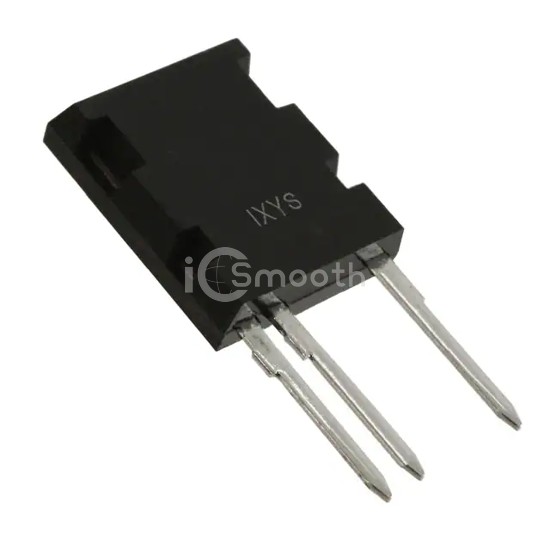

IXEL40N400 - IXYS - Transistors - IGBTs - Single
REF: IXEL40N400 IXYS
IXEL40N400

IXYS

IGBT 4000V 90A 380W ISOPLUSI5

IXEL40N400 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 4000V 90A 380W ISOPLUSI5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case ISOPLUSi5-Pak™, current - collector (ic) (max) 90 A.

Datasheet Request a Quote

In Stock: 194

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)4000 V
Current - Collector (Ic) (Max)90 A
Current - Collector Pulsed (Icm)400 A
Vce(on) (Max) @ Vge, Ic3.2V @ 15V, 40A
Power - Max380 W
Switching Energy55mJ (on), 165mJ (off)
Input TypeStandard
Gate Charge275 nC
Td (on/off) @ 25°C160ns/630ns
Test Condition2800V, 40A, 33Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseISOPLUSi5-Pak™
Supplier Device PackageISOPLUSi5-Pak™
