Name: IXEH40N120D1
Brand: IXYS
SKU: IXEH40N120D1
Availability: InStock

REF: IXEH40N120D1 IXYS

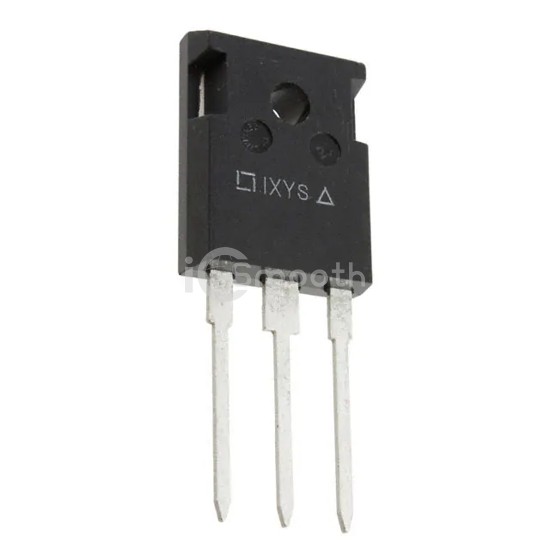

IXEH40N120D1

IGBT 1200V 60A 300W TO247AD

IXEH40N120D1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 60A 300W TO247AD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 60 A.

Datasheet Request a Quote

In Stock: 7,005

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	NPT
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	60 A
Current - Collector Pulsed (Icm)	-
Vce(on) (Max) @ Vge, Ic	3V @ 15V, 40A
Power - Max	300 W
Switching Energy	6.1mJ (on), 3mJ (off)
Input Type	Standard

Gate Charge	150 nC
Td (on/off) @ 25°C	-
Test Condition	600V, 40A, 39Ohm, 15V
Reverse Recovery Time (trr)	180 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247AD
