IXEH25N120D1

In Stock: 8,314

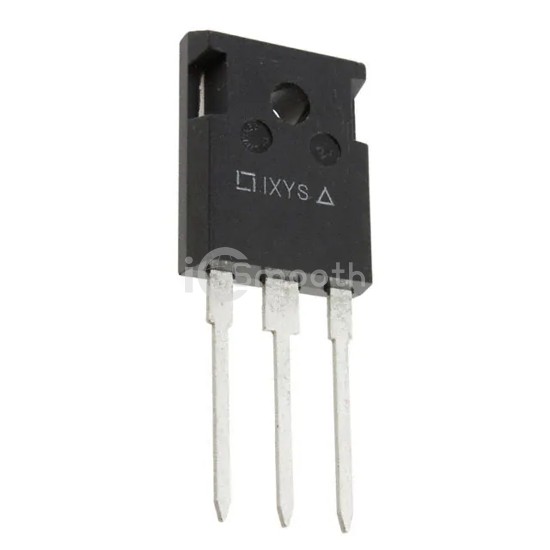

IXEH25N120D1 - IXYS - Transistors - IGBTs - Single
REF: IXEH25N120D1 IXYS
IXEH25N120D1

IXYS

IGBT 1200V 36A 200W TO247AD

IXEH25N120D1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 36A 200W TO247AD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 36 A.

Datasheet Request a Quote

In Stock: 8,314

Specifications

17 parameters
Product StatusObsolete
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)36 A
Current - Collector Pulsed (Icm)-
Vce(on) (Max) @ Vge, Ic3.2V @ 15V, 25A
Power - Max200 W
Switching Energy4.1mJ (on), 1.5mJ (off)
Input TypeStandard
Gate Charge100 nC
Td (on/off) @ 25°C-
Test Condition600V, 20A, 68Ohm, 15V
Reverse Recovery Time (trr)130 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247AD
