IXBX50N360HV

In Stock: 7,617

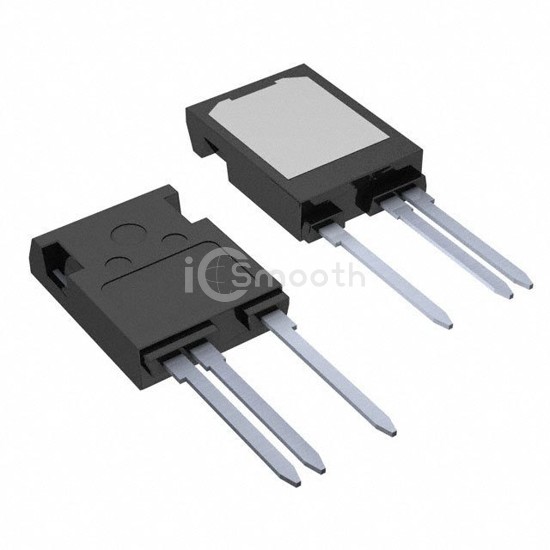

IXBX50N360HV - IXYS - Transistors - IGBTs - Single
REF: IXBX50N360HV IXYS
IXBX50N360HV

IXYS

IGBT 3600V 125A 660W TO-247PLUS

IXBX50N360HV is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 3600V 125A 660W TO-247PLUS. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3 Variant, current - collector (ic) (max) 125 A.

Datasheet Request a Quote

In Stock: 7,617

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)3600 V
Current - Collector (Ic) (Max)125 A
Current - Collector Pulsed (Icm)420 A
Vce(on) (Max) @ Vge, Ic2.9V @ 15V, 50A
Power - Max660 W
Switching Energy-
Input TypeStandard
Gate Charge210 nC
Td (on/off) @ 25°C46ns/205ns
Test Condition960V, 50A, 5Ohm, 15V
Reverse Recovery Time (trr)1.7 µs
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3 Variant
Supplier Device PackageTO-247PLUS-HV
