Name: IXBT32N300HV
Brand: IXYS
SKU: IXBT32N300HV
Price: 55.24 USD
Availability: InStock

REF: IXBT32N300HV IXYS

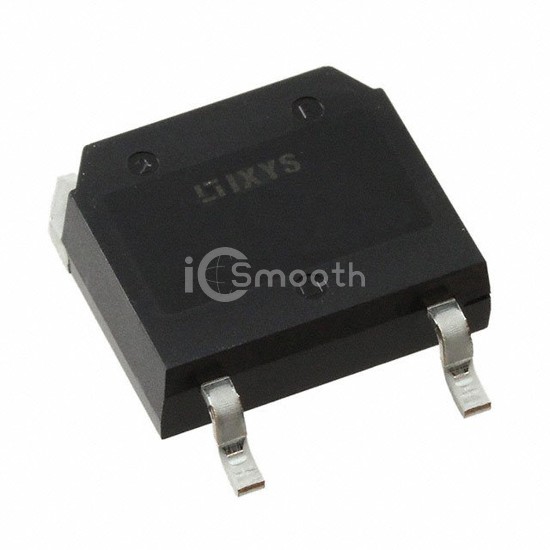

IXBT32N300HV

IGBT 3000V 80A 400W TO268

IXBT32N300HV is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 3000V 80A 400W TO268. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 8,180

Specifications

17 parameters

Product Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	3000 V
Current - Collector (Ic) (Max)	80 A
Current - Collector Pulsed (Icm)	280 A
Vce(on) (Max) @ Vge, Ic	3.2V @ 15V, 32A
Power - Max	400 W
Switching Energy	-
Input Type	Standard

Gate Charge	142 nC
Td (on/off) @ 25°C	50ns/160ns
Test Condition	1250V, 32A, 2Ohm, 15V
Reverse Recovery Time (trr)	1500 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package	TO-268HV
