IXBL60N360

In Stock: 1,366
IXBL60N360 - IXYS - Transistors - IGBTs - Single
REF: IXBL60N360 IXYS

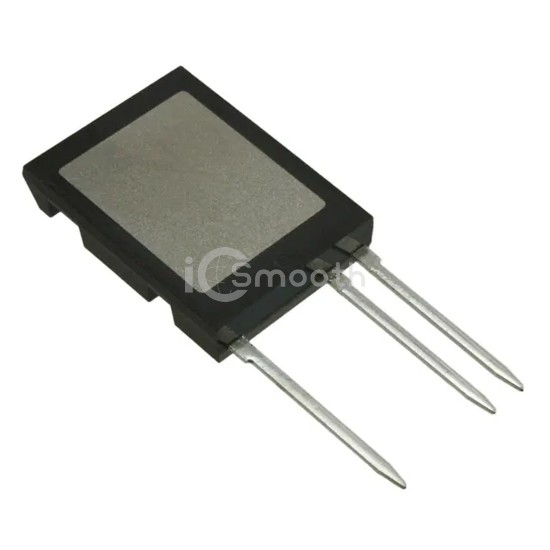

IXBL60N360

IXYS

IGBT 3600V 92A ISOPLUS I5PAK

IXBL60N360 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 3600V 92A ISOPLUS I5PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case ISOPLUSi5-Pak™, current - collector (ic) (max) 92 A.

Datasheet Request a Quote

In Stock: 1,366

Specifications

17 parameters
Product StatusNot For New Designs
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)3600 V
Current - Collector (Ic) (Max)92 A
Current - Collector Pulsed (Icm)720 A
Vce(on) (Max) @ Vge, Ic3.4V @ 15V, 60A
Power - Max417 W
Switching Energy-
Input TypeStandard
Gate Charge450 nC
Td (on/off) @ 25°C50ns/340ns
Test Condition960V, 60A, 4.7Ohm, 15V
Reverse Recovery Time (trr)1.95 µs
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseISOPLUSi5-Pak™
Supplier Device PackageISOPLUSi5-Pak™
