IXBL20N300C

In Stock: 5,435

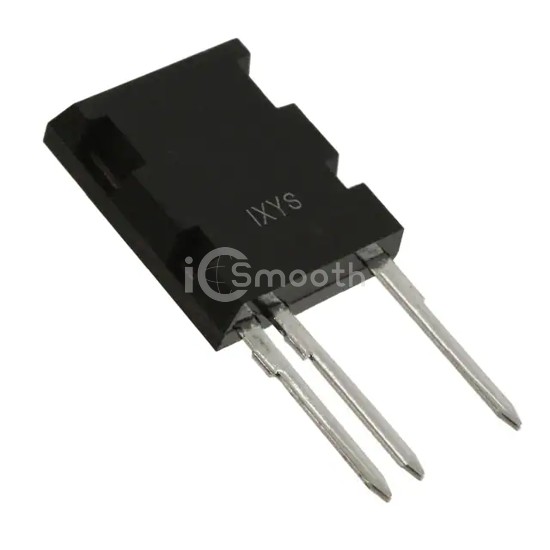

IXBL20N300C - IXYS - Transistors - IGBTs - Single
REF: IXBL20N300C IXYS
IXBL20N300C

IXYS

IGBT 3000V

IXBL20N300C is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 3000V. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case ISOPLUSi5-Pak™, current - collector (ic) (max) 50 A.

Datasheet Request a Quote

In Stock: 5,435

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)3000 V
Current - Collector (Ic) (Max)50 A
Current - Collector Pulsed (Icm)430 A
Vce(on) (Max) @ Vge, Ic6V @ 15V, 20A
Power - Max417 W
Switching Energy23mJ (on), 2.6mJ (off)
Input TypeStandard
Gate Charge425 nC
Td (on/off) @ 25°C33ns/370ns
Test Condition1500V, 20A, 3Ohm, 15V
Reverse Recovery Time (trr)864 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseISOPLUSi5-Pak™
Supplier Device PackageISOPLUSi5-Pak™
