IXBF50N360

In Stock: 7,152

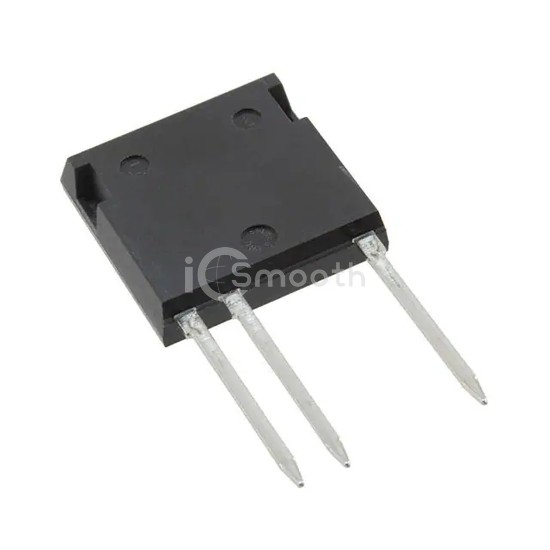

IXBF50N360 - IXYS - Transistors - IGBTs - Single
REF: IXBF50N360 IXYS
IXBF50N360

IXYS

IGBT 3600V 70A 290W I4-PAK

IXBF50N360 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 3600V 70A 290W I4-PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case i4-Pac™-5 (3 Leads), current - collector (ic) (max) 70 A.

Datasheet Request a Quote

In Stock: 7,152

Specifications

17 parameters
Product StatusNot For New Designs
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)3600 V
Current - Collector (Ic) (Max)70 A
Current - Collector Pulsed (Icm)420 A
Vce(on) (Max) @ Vge, Ic2.9V @ 15V, 50A
Power - Max290 W
Switching Energy-
Input TypeStandard
Gate Charge210 nC
Td (on/off) @ 25°C46ns/205ns
Test Condition960V, 50A, 5Ohm, 15V
Reverse Recovery Time (trr)1.7 µs
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Casei4-Pac™-5 (3 Leads)
Supplier Device PackageISOPLUS i4-PAC™
