IXBF20N360

In Stock: 3,146

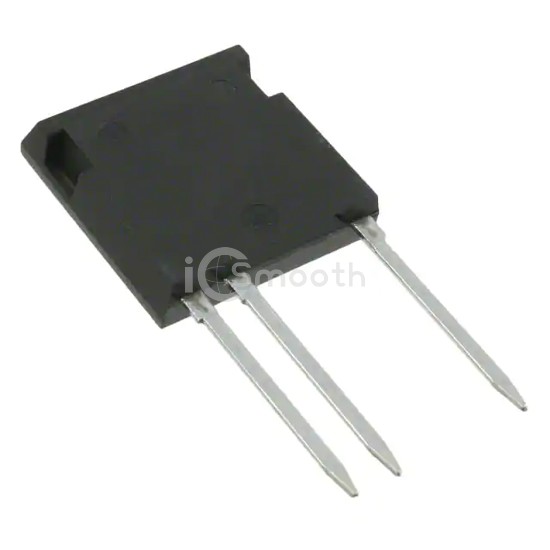

IXBF20N360 - IXYS - Transistors - IGBTs - Single
REF: IXBF20N360 IXYS
IXBF20N360

IXYS

IGBT 3600V 45A ISOPLUS I4PAK

IXBF20N360 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 3600V 45A ISOPLUS I4PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case i4-Pac™-5 (3 Leads), current - collector (ic) (max) 45 A.

Datasheet Request a Quote

In Stock: 3,146

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)3600 V
Current - Collector (Ic) (Max)45 A
Current - Collector Pulsed (Icm)220 A
Vce(on) (Max) @ Vge, Ic3.4V @ 15V, 20A
Power - Max230 W
Switching Energy15.5mJ (on), 4.3mJ (off)
Input TypeStandard
Gate Charge43 nC
Td (on/off) @ 25°C18ns/238ns
Test Condition1500V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)1.7 µs
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Casei4-Pac™-5 (3 Leads)
Supplier Device PackageISOPLUS i4-PAC™
