IXBF15N300C

In Stock: 7,100

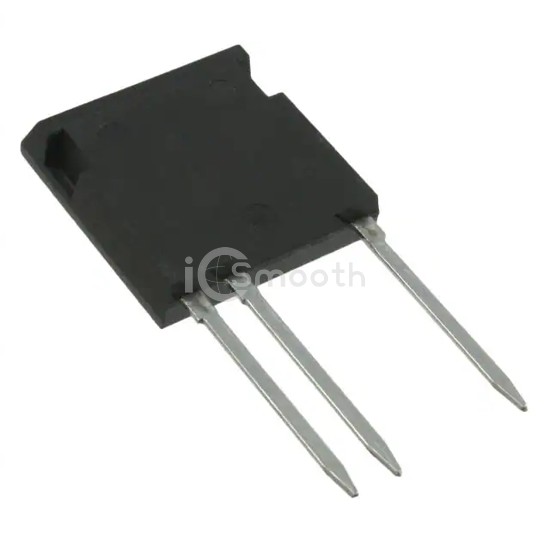

IXBF15N300C - IXYS - Transistors - IGBTs - Single
REF: IXBF15N300C IXYS
IXBF15N300C

IXYS

IGBT 3000V 37A 300W ISOPLUSI4

IXBF15N300C is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 3000V 37A 300W ISOPLUSI4. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case i4-Pac™-5 (3 Leads), current - collector (ic) (max) 37 A.

Datasheet Request a Quote

In Stock: 7,100

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)3000 V
Current - Collector (Ic) (Max)37 A
Current - Collector Pulsed (Icm)300 A
Vce(on) (Max) @ Vge, Ic6V @ 15V, 15A
Power - Max300 W
Switching Energy9.15mJ (on), 1.4mJ (off)
Input TypeStandard
Gate Charge267 nC
Td (on/off) @ 25°C40ns/455ns
Test Condition1500V, 15A, 10Ohm, 15V
Reverse Recovery Time (trr)706 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Casei4-Pac™-5 (3 Leads)
Supplier Device PackageISOPLUS i4-PAC™
