IXBF12N300

In Stock: 6,299

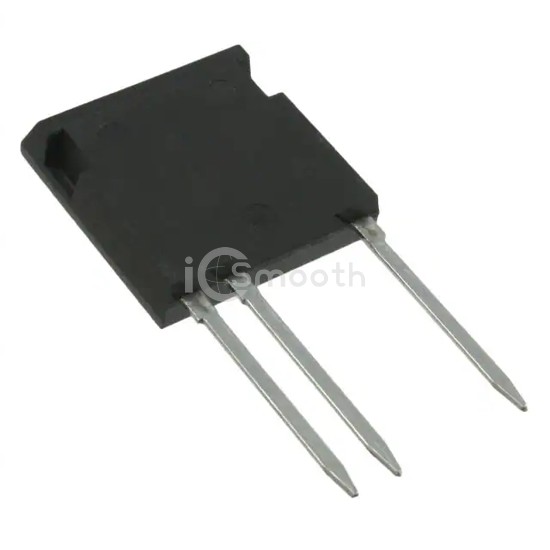

IXBF12N300 - IXYS - Transistors - IGBTs - Single
REF: IXBF12N300 IXYS
IXBF12N300

IXYS

IGBT 3000V 26A 125W ISOPLUSI4

IXBF12N300 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 3000V 26A 125W ISOPLUSI4. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case i4-Pac™-5 (3 Leads), current - collector (ic) (max) 26 A.

Datasheet Request a Quote

In Stock: 6,299

Specifications

17 parameters
Product StatusNot For New Designs
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)3000 V
Current - Collector (Ic) (Max)26 A
Current - Collector Pulsed (Icm)98 A
Vce(on) (Max) @ Vge, Ic3.2V @ 15V, 12A
Power - Max125 W
Switching Energy-
Input TypeStandard
Gate Charge62 nC
Td (on/off) @ 25°C-
Test Condition-
Reverse Recovery Time (trr)1.4 µs
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Casei4-Pac™-5 (3 Leads)
Supplier Device PackageISOPLUS i4-PAC™
