Name: IXBA16N170AHV
Brand: IXYS
SKU: IXBA16N170AHV
Price: 27.50 USD
Availability: InStock

REF: IXBA16N170AHV IXYS

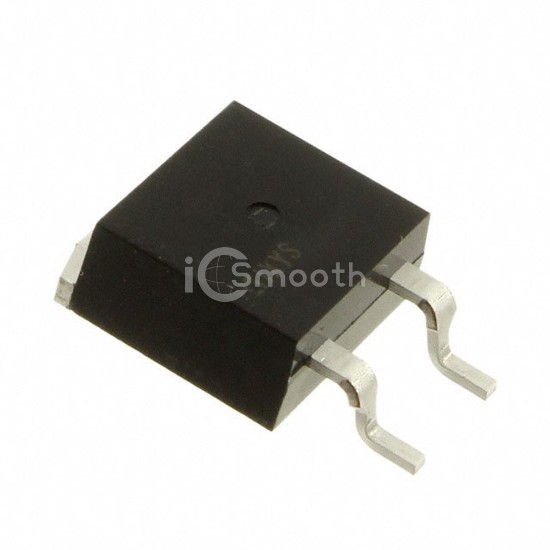

IXBA16N170AHV

REVERSE CONDUCTING IGBT

IXBA16N170AHV is a Transistors - IGBTs - Single manufactured by IXYS. REVERSE CONDUCTING IGBT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 16 A.

Datasheet Request a Quote

In Stock: 35

Specifications

17 parameters

Product Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	1700 V
Current - Collector (Ic) (Max)	16 A
Current - Collector Pulsed (Icm)	40 A
Vce(on) (Max) @ Vge, Ic	6V @ 15V, 10A
Power - Max	150 W
Switching Energy	2.5mJ (off)
Input Type	Standard

Gate Charge	65 nC
Td (on/off) @ 25°C	15ns/250ns
Test Condition	1360V, 10A, 10Ohm, 15V
Reverse Recovery Time (trr)	25 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	TO-263HV
