IXA70R1200NA

In Stock: 9,688

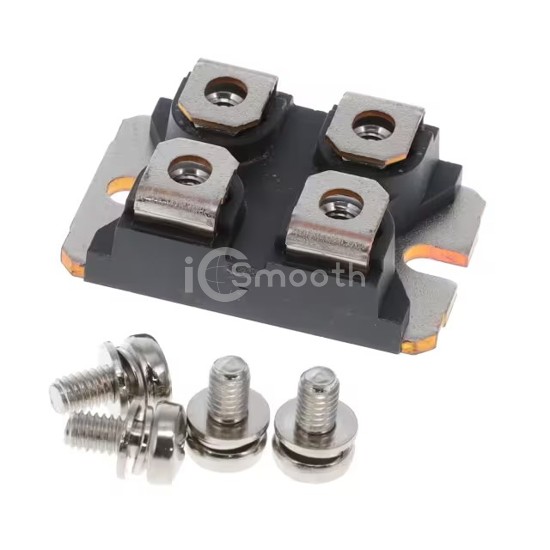

IXA70R1200NA - IXYS - Transistors - IGBTs - Single
REF: IXA70R1200NA IXYS
IXA70R1200NA

IXYS

DISC IGBT XPT-GENX3 SOT-227B(MIN

IXA70R1200NA is a Transistors - IGBTs - Single manufactured by IXYS. DISC IGBT XPT-GENX3 SOT-227B(MIN. Key specifications: mounting type Chassis Mount, package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 100 A, power - max 350 W.

Request a Quote

In Stock: 9,688

Specifications

17 parameters
Product StatusActive
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)100 A
Current - Collector Pulsed (Icm)-
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 50A
Power - Max350 W
Switching Energy4.5mJ (on), 5.5mJ (off)
Input TypeStandard
Gate Charge190 nC
Td (on/off) @ 25°C70ns/250ns
Test Condition600V, 50A, 15Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227B
