Name: CLA60MT1200NTZ-TUB
Brand: IXYS
SKU: CLA60MT1200NTZ-TUB
Price: 10.02 USD
Availability: InStock

REF: CLA60MT1200NTZ-TUB IXYS

CLA60MT1200NTZ-TUB

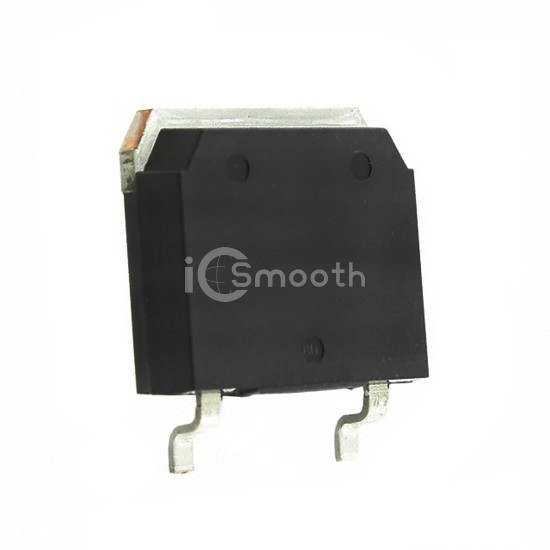

TRIAC 1.2KV 66A TO-268AA

CLA60MT1200NTZ-TUB is a Thyristors - TRIACs manufactured by IXYS. TRIAC 1.2KV 66A TO-268AA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA.

Datasheet Request a Quote

In Stock: 6,947

Tiered Pricing USD

1+ $10.0200 —

30+ $5.9303 -41%

120+ $5.0323 -50%

510+ $4.6149 -54% BEST

Specifications

13 parameters

Product Status	Active
Triac Type	Standard
Voltage - Off State	1.2 kV
Current - On State (It (RMS)) (Max)	66 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	380A, 410A
Current - Gate Trigger (Igt) (Max)	60 mA

Current - Hold (Ih) (Max)	60 mA
Configuration	Single
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package	TO-268AA
