Name: CLA30MT1200NPZ-TRL
Brand: IXYS
SKU: CLA30MT1200NPZ-TRL
Price: 7.09 USD
Availability: InStock

REF: CLA30MT1200NPZ-TRL IXYS

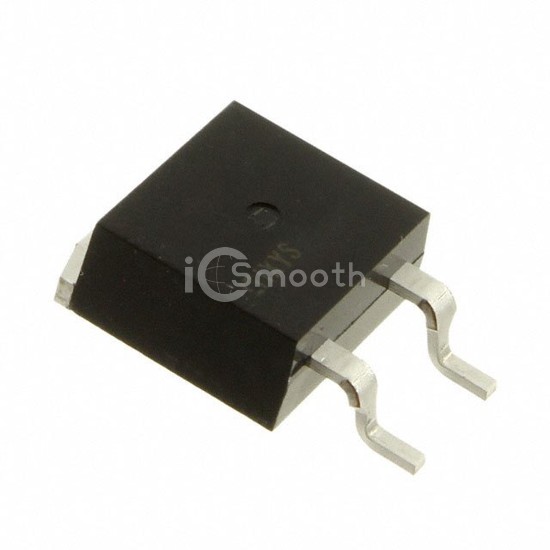

CLA30MT1200NPZ-TRL

THYRISTOR PHASE THRU TO263AB

CLA30MT1200NPZ-TRL is a Thyristors - TRIACs manufactured by IXYS. THYRISTOR PHASE THRU TO263AB. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 7,833

Tiered Pricing USD

1+ $7.0900 —

10+ $4.7920 -32%

100+ $3.4893 -51% BEST

Specifications

13 parameters

Product Status	Active
Triac Type	Standard
Voltage - Off State	1.2 kV
Current - On State (It (RMS)) (Max)	33 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	170A, 185A
Current - Gate Trigger (Igt) (Max)	40 mA

Current - Hold (Ih) (Max)	50 mA
Configuration	Single
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	TO-263HV
