CPC7556N

In Stock: 2,222

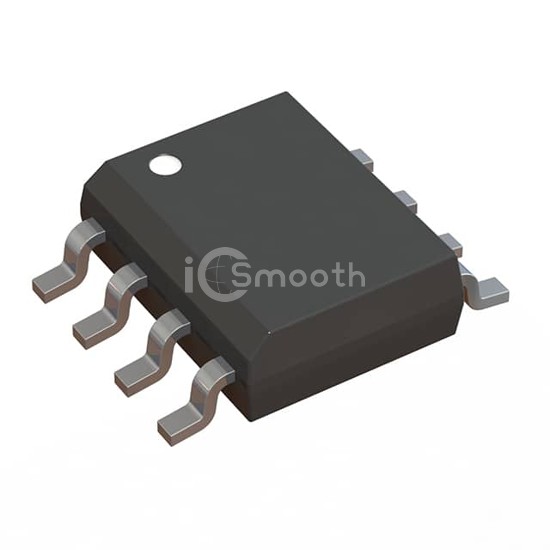

CPC7556N - IXYS Integrated Circuits Division - Diodes - Bridge Rectifiers
REF: CPC7556N IXYS Integrated Circuits Division
CPC7556N

IXYS Integrated Circuits Division

BRIDGE RECT 1P 120V 250MA 8SOIC

CPC7556N is a Diodes - Bridge Rectifiers manufactured by IXYS Integrated Circuits Division. BRIDGE RECT 1P 120V 250MA 8SOIC. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 2,222

Specifications

11 parameters
Product StatusObsolete
Diode TypeSingle Phase
TechnologyStandard
Voltage - Peak Reverse (Max)120 V
Current - Average Rectified (Io)250 mA
Voltage - Forward (Vf) (Max) @ If1.49 V @ 250 mA
Current - Reverse Leakage @ Vr1 µA @ 100 V
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
