Name: CPC5001GSTR
Brand: IXYS Integrated Circuits Division
SKU: CPC5001GSTR
Price: 3.75 USD
Availability: InStock

REF: CPC5001GSTR IXYS Integrated Circuits Division

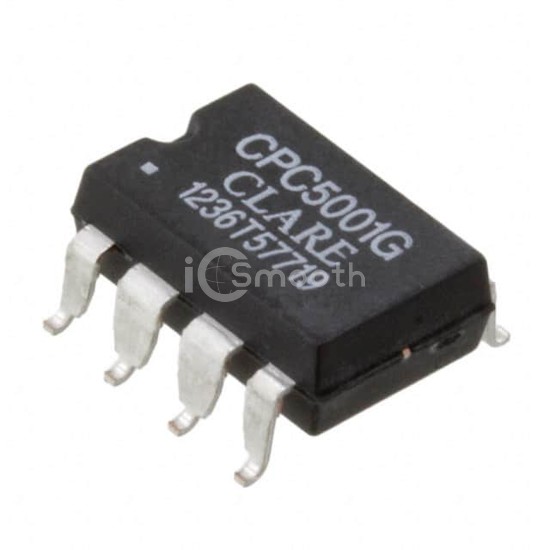

CPC5001GSTR

IXYS Integrated Circuits Division

OPTOISO 3.75KV 2CH OPEN DRN 8SMD

CPC5001GSTR is a Optoisolators - Logic Output manufactured by IXYS Integrated Circuits Division. OPTOISO 3.75KV 2CH OPEN DRN 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2.7V ~ 5.5V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 67

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	2
Inputs - Side 1/Side 2	1/1
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	5kV/µs, 7kV/µs
Input Type	Logic
Output Type	Open Drain
Current - Output / Channel	-
Data Rate	5MBd

Propagation Delay tpLH / tpHL (Max)	250ns, 100ns
Rise / Fall Time (Typ)	-
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Supply	2.7V ~ 5.5V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-SMD, Gull Wing
Supplier Device Package	-
