Name: CPC3708CTR
Brand: IXYS Integrated Circuits Division
SKU: CPC3708CTR
Price: 0.75 USD
Availability: InStock

REF: CPC3708CTR IXYS Integrated Circuits Division

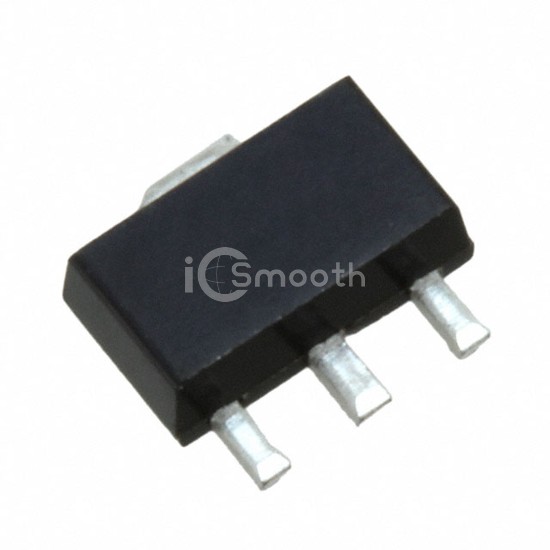

CPC3708CTR

IXYS Integrated Circuits Division

MOSFET N-CH 350V 5MA SOT89

CPC3708CTR is a Transistors - FETs, MOSFETs - Single manufactured by IXYS Integrated Circuits Division. MOSFET N-CH 350V 5MA SOT89. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 110°C (TA), package / case TO-243AA.

Datasheet Request a Quote

In Stock: 8,019

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	350 V
Current - Continuous Drain (Id) @ 25°C	5mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	0.35V
Rds On (Max) @ Id, Vgs	14Ohm @ 50mA, 350mV
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	300 pF @ 0 V
FET Feature	Depletion Mode
Power Dissipation (Max)	1.1W (Ta)
Operating Temperature	-40°C ~ 110°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	SOT-89
Package / Case	TO-243AA
