Name: CPC3701CTR
Brand: IXYS Integrated Circuits Division
SKU: CPC3701CTR
Price: 0.91 USD
Availability: InStock

REF: CPC3701CTR IXYS Integrated Circuits Division

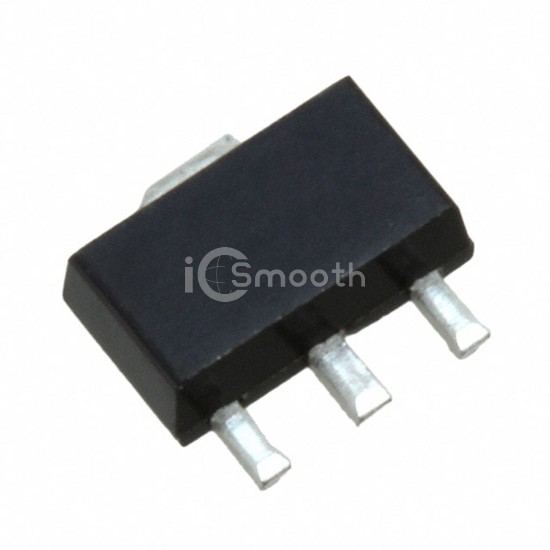

CPC3701CTR

IXYS Integrated Circuits Division

MOSFET N-CH 60V SOT89

CPC3701CTR is a Transistors - FETs, MOSFETs - Single manufactured by IXYS Integrated Circuits Division. MOSFET N-CH 60V SOT89. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case TO-243AA.

Datasheet Request a Quote

In Stock: 853

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	-
Drive Voltage (Max Rds On, Min Rds On)	0V
Rds On (Max) @ Id, Vgs	1Ohm @ 300mA, 0V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±15V
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	Depletion Mode
Power Dissipation (Max)	1.1W (Ta)
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-89
Package / Case	TO-243AA
