H11L1SM

In Stock: 8,697

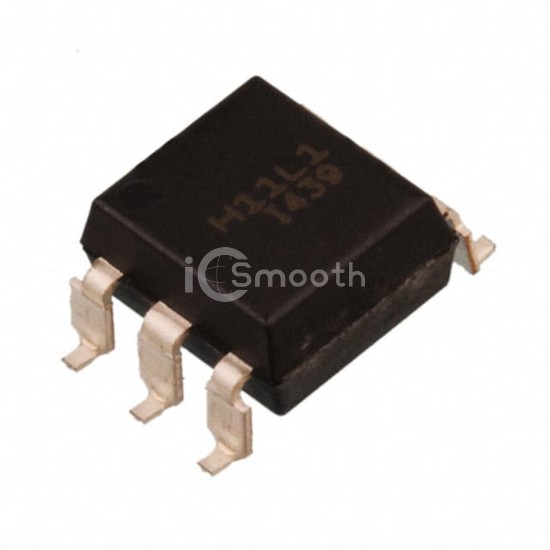

H11L1SM - Isocom Components 2004 LTD - Optoisolators - Logic Output
REF: H11L1SM Isocom Components 2004 LTD
H11L1SM

Isocom Components 2004 LTD

OPTOISO 5KV OPEN COLLECTOR 6SMD

H11L1SM is a Optoisolators - Logic Output manufactured by Isocom Components 2004 LTD. OPTOISO 5KV OPEN COLLECTOR 6SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C, voltage - supply 3V ~ 15V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 8,697

Tiered Pricing USD
1+ $1.0500 —
65+ $0.5757 -45%
130+ $0.5309 -49%
520+ $0.4600 -56%
1,040+ $0.4323 -59%
2,015+ $0.4098 -61%
5,005+ $0.3841 -63%
10,010+ $0.3680 -65%
25,025+ $0.3504 -67% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)-
Input TypeDC
Output TypeOpen Collector
Current - Output / Channel50 mA
Data Rate1MHz
Propagation Delay tpLH / tpHL (Max)6µs, 3µs
Rise / Fall Time (Typ)100ns, 50ns
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)50mA
Voltage - Supply3V ~ 15V
Operating Temperature-25°C ~ 85°C
Mounting TypeSurface Mount
Package / Case6-SMD, Gull Wing
Supplier Device Package6-SMD
