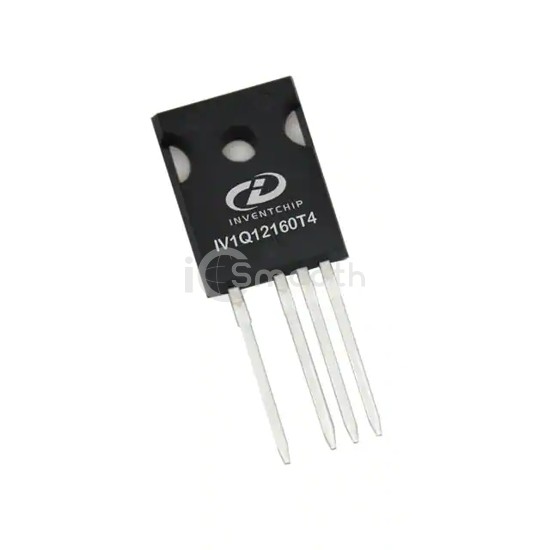

IV1Q12160T4

In Stock: 111
IV1Q12160T4 - Inventchip - Transistors - FETs, MOSFETs - Single
REF: IV1Q12160T4 Inventchip
IV1Q12160T4

Inventchip

SIC MOSFET, 1200V 160MOHM, TO-24

IV1Q12160T4 is a Transistors - FETs, MOSFETs - Single manufactured by Inventchip. SIC MOSFET, 1200V 160MOHM, TO-24. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 111

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)20V
Rds On (Max) @ Id, Vgs195mOhm @ 10A, 20V
Vgs(th) (Max) @ Id2.9V @ 1.9mA
Gate Charge (Qg) (Max) @ Vgs43 nC @ 20 V
Vgs (Max)+20V, -5V
Input Capacitance (Ciss) (Max) @ Vds885 pF @ 800 V
FET Feature-
Power Dissipation (Max)138W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-4
Package / CaseTO-247-4
