Name: ISL84762IUZ
Brand: Intersil
SKU: ISL84762IUZ
Price: 2.48 USD
Availability: InStock

REF: ISL84762IUZ Intersil

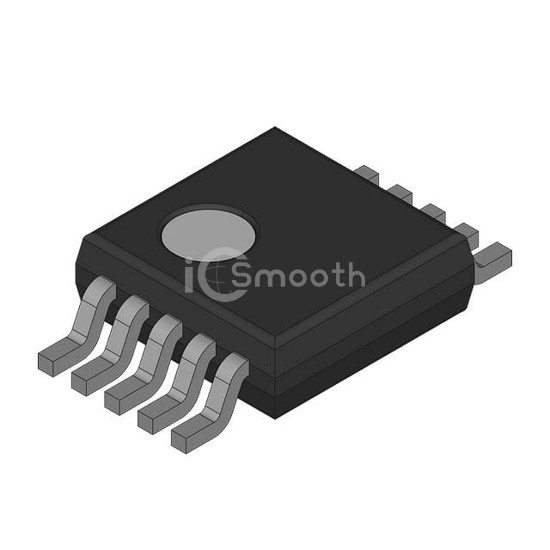

ISL84762IUZ

SPDT ANALOG SWITCH, 2 FUNC, 1 CH

ISL84762IUZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. SPDT ANALOG SWITCH, 2 FUNC, 1 CH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 684

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	600mOhm
Channel-to-Channel Matching (ΔRon)	50mOhm
Voltage - Supply, Single (V+)	1.65V ~ 3.6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	20ns, 12ns

-3db Bandwidth	-
Charge Injection	95pC
Channel Capacitance (CS(off), CD(off))	115pF
Current - Leakage (IS(off)) (Max)	2nA
Crosstalk	-95dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-MSOP
