Name: ISL84582IVZ
Brand: Intersil
SKU: ISL84582IVZ
Price: 1.55 USD
Availability: InStock

REF: ISL84582IVZ Intersil

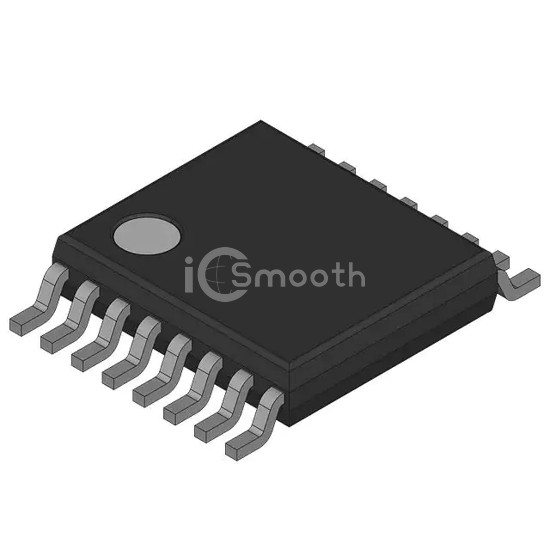

ISL84582IVZ

DIFFERENTIAL MULTIPLEXER, 1 FUNC

ISL84582IVZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. DIFFERENTIAL MULTIPLEXER, 1 FUNC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-TSSOP (0.173", 4.40mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 1,012

Specifications

18 parameters

Product Status	Active
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	60Ohm
Channel-to-Channel Matching (ΔRon)	1.3Ohm
Voltage - Supply, Single (V+)	2V ~ 12V
Voltage - Supply, Dual (V±)	±2V ~ 6V
Switch Time (Ton, Toff) (Max)	50ns, 35ns

-3db Bandwidth	-
Charge Injection	0.3pC
Channel Capacitance (CS(off), CD(off))	3pF, 12pF
Current - Leakage (IS(off)) (Max)	20pA (Typ)
Crosstalk	-110dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	16-TSSOP
