Name: ISL84525IUZ
Brand: Intersil
SKU: ISL84525IUZ
Availability: InStock

REF: ISL84525IUZ Intersil

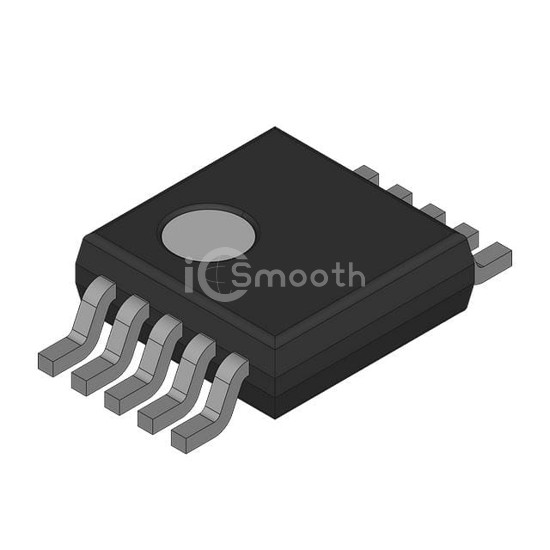

ISL84525IUZ

DPDT ANALOG SWITCH, 2 CHANNEL,

ISL84525IUZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. DPDT ANALOG SWITCH, 2 CHANNEL,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 5,849

Specifications

18 parameters

Product Status	Active
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	2
On-State Resistance (Max)	150Ohm
Channel-to-Channel Matching (ΔRon)	2Ohm
Voltage - Supply, Single (V+)	2V ~ 12V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	150ns, 120ns

-3db Bandwidth	-
Charge Injection	0.8pC
Channel Capacitance (CS(off), CD(off))	4pF, 14pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-85dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-MSOP
