Name: ISL43L120IR
Brand: Intersil
SKU: ISL43L120IR
Price: 2.00 USD
Availability: InStock

REF: ISL43L120IR Intersil

ISL43L120IR

SPDT, 2 FUNC, 2 CHANNEL, CMOS

ISL43L120IR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. SPDT, 2 FUNC, 2 CHANNEL, CMOS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-WDFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 3,685

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	2
On-State Resistance (Max)	250mOhm
Channel-to-Channel Matching (ΔRon)	5mOhm
Voltage - Supply, Single (V+)	1.65V ~ 3.6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	25ns, 25ns

-3db Bandwidth	-
Charge Injection	-125pC
Channel Capacitance (CS(off), CD(off))	182pF, 182pF
Current - Leakage (IS(off)) (Max)	3nA
Crosstalk	-94dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount

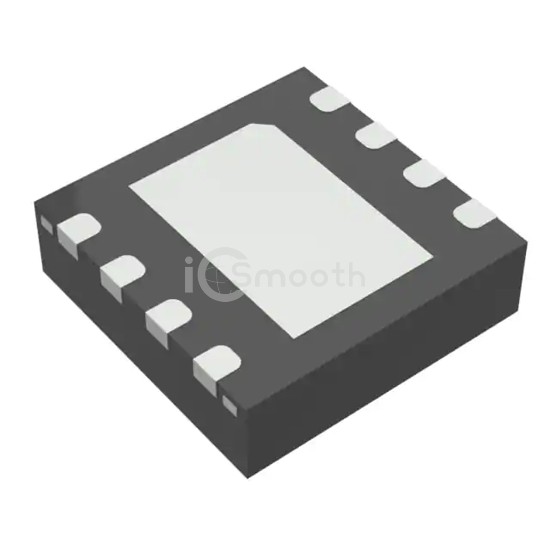

Package / Case	8-WDFN Exposed Pad
Supplier Device Package	8-TDFN (3x3)
