Name: HI9P0201HS-5
Brand: Intersil
SKU: HI9P0201HS-5
Availability: InStock

REF: HI9P0201HS-5 Intersil

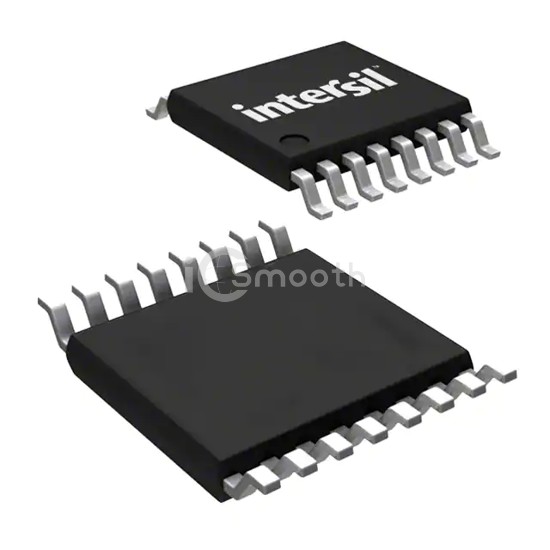

HI9P0201HS-5

SPST, 4 FUNC, 1 CHANNEL, CMOS

HI9P0201HS-5 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. SPST, 4 FUNC, 1 CHANNEL, CMOS. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 75°C (TA), package / case 16-SOIC (0.295", 7.50mm Width), number of circuits 4.

Request a Quote

In Stock: 7,756

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	50Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	-
Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	50ns, 50ns

-3db Bandwidth	-
Charge Injection	10pC
Channel Capacitance (CS(off), CD(off))	10pF, 10pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-86dB @ 100kHz
Operating Temperature	0°C ~ 75°C (TA)
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
