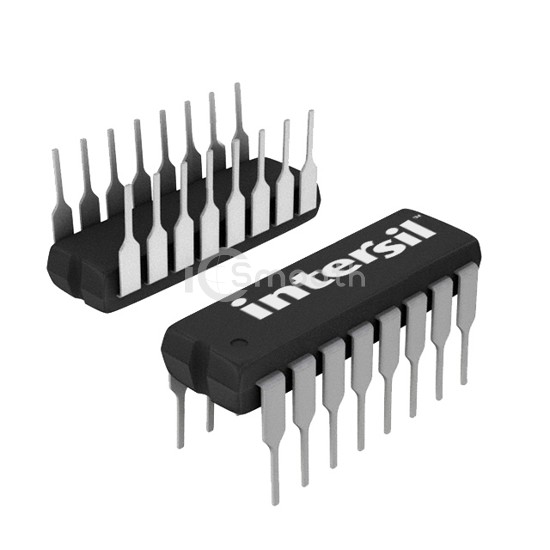

Name: HI1-0201-4
Brand: Intersil
SKU: HI1-0201-4
Price: 9.17 USD
Availability: InStock

REF: HI1-0201-4 Intersil

HI1-0201-4

SPST, 4 FUNC, 1 CHANNEL

HI1-0201-4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. SPST, 4 FUNC, 1 CHANNEL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C (TA), package / case 16-CDIP (0.300", 7.62mm), number of circuits 4.

Datasheet Request a Quote

In Stock: 5,945

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	80Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	-
Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	180ns, 220ns

-3db Bandwidth	-
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	5.5pF, 5.5pF
Current - Leakage (IS(off)) (Max)	50nA
Crosstalk	-
Operating Temperature	-25°C ~ 85°C (TA)
Mounting Type	Through Hole
Package / Case	16-CDIP (0.300", 7.62mm)
Supplier Device Package	16-CERDIP
