Name: TLE824523SAAUMA1
Brand: Infineon Technologies
SKU: TLE824523SAAUMA1
Price: 10.91 USD
Availability: InStock

REF: TLE824523SAAUMA1 Infineon Technologies

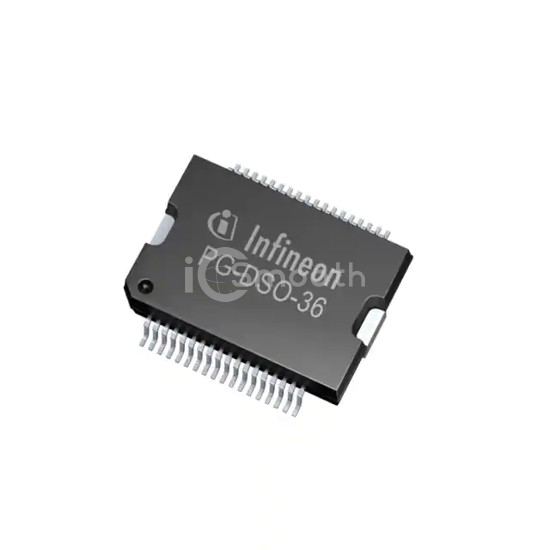

TLE824523SAAUMA1

Infineon Technologies

IC PWR DRIVER N-CHAN 1:2 DSO-36

TLE824523SAAUMA1 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Infineon Technologies. IC PWR DRIVER N-CHAN 1:2 DSO-36. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 4.75V ~ 5.25V, package / case 36-BSSOP (0.433", 11.00mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 3,395

Specifications

18 parameters

Product Status	Active
Switch Type	Relay, Solenoid Driver
Number of Outputs	4
Ratio - Input:Output	1:2
Output Configuration	High Side or Low Side
Output Type	N-Channel
Interface	SPI
Voltage - Load	8V ~ 17V
Voltage - Supply (Vcc/Vdd)	4.75V ~ 5.25V

Current - Output (Max)	1.5A
Rds On (Typ)	250mOhm (Max)
Input Type	-
Features	Slew Rate Controlled, Status Flag
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-DSO-36-54
Package / Case	36-BSSOP (0.433", 11.00mm Width) Exposed Pad
