Name: TLE7241EXUMA2
Brand: Infineon Technologies
SKU: TLE7241EXUMA2
Availability: InStock

REF: TLE7241EXUMA2 Infineon Technologies

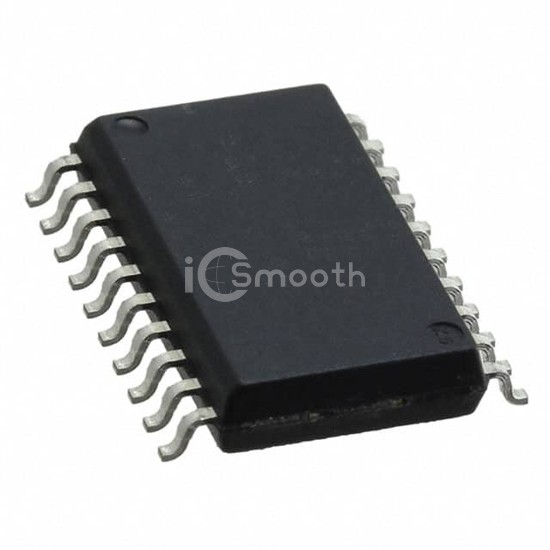

TLE7241EXUMA2

IC PWR DRIVER N-CHAN 1:2 DSO-20

TLE7241EXUMA2 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Infineon Technologies. IC PWR DRIVER N-CHAN 1:2 DSO-20. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 4.75V ~ 5.25V, package / case 20-SOIC (0.295", 7.50mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 5,022

Specifications

18 parameters

Product Status	Obsolete
Switch Type	Relay, Solenoid Driver
Number of Outputs	2
Ratio - Input:Output	1:2
Output Configuration	Low Side
Output Type	N-Channel
Interface	SPI
Voltage - Load	9V ~ 18V
Voltage - Supply (Vcc/Vdd)	4.75V ~ 5.25V

Current - Output (Max)	1.2A
Rds On (Typ)	240mOhm
Input Type	-
Features	Slew Rate Controlled
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-DSO-20-27
Package / Case	20-SOIC (0.295", 7.50mm Width) Exposed Pad
