Name: TLE7236E
Brand: Infineon Technologies
SKU: TLE7236E
Availability: InStock

REF: TLE7236E Infineon Technologies

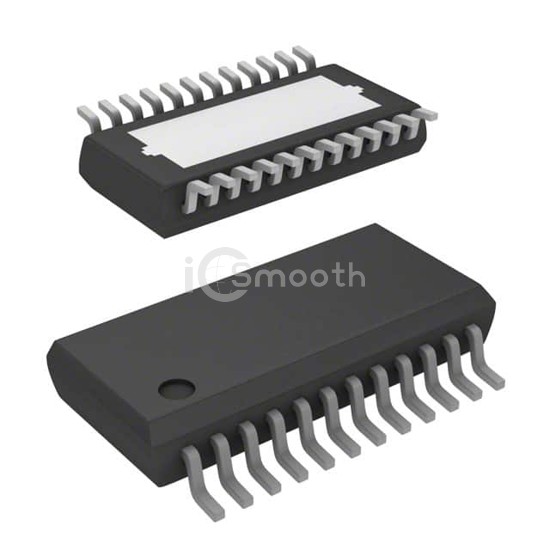

TLE7236E

IC PWR DRIVER N-CHAN 1:8 24SSOP

TLE7236E is a PMIC - Power Distribution Switches, Load Drivers manufactured by Infineon Technologies. IC PWR DRIVER N-CHAN 1:8 24SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 24-LSSOP (0.154", 3.90mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 9,884

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	8
Ratio - Input:Output	1:8
Output Configuration	High Side or Low Side
Output Type	N-Channel
Interface	SPI
Voltage - Load	9V ~ 16V
Voltage - Supply (Vcc/Vdd)	3V ~ 5.5V

Current - Output (Max)	175mA, 350mA
Rds On (Typ)	900mOhm, 1.6Ohm
Input Type	-
Features	-
Fault Protection	Open Load Detect, Over Temperature
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-SSOP-24-4
Package / Case	24-LSSOP (0.154", 3.90mm Width) Exposed Pad
