TLE5109A16E1210XUMA1

In Stock: 6,793

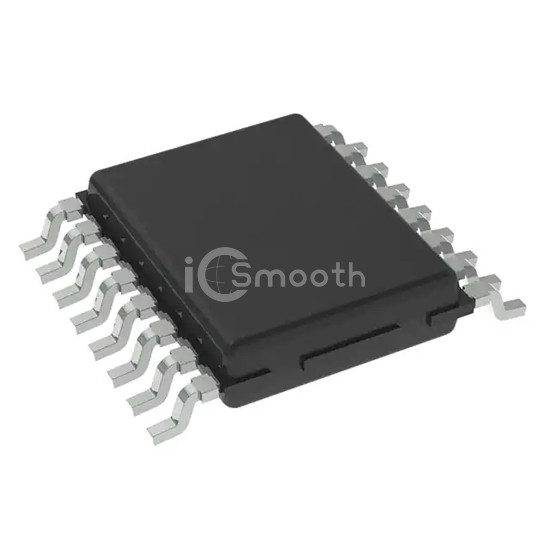

TLE5109A16E1210XUMA1 - Infineon Technologies - Position Sensors - Angle, Linear Position Measuring
REF: TLE5109A16E1210XUMA1 Infineon Technologies
TLE5109A16E1210XUMA1

Infineon Technologies

IC ANGLE SENSOR 3.3 V

TLE5109A16E1210XUMA1 is a Position Sensors - Angle, Linear Position Measuring manufactured by Infineon Technologies. IC ANGLE SENSOR 3.3 V. Key specifications: mounting type Surface Mount, voltage - supply 3.3V, package / case 16-TSSOP (0.154", 3.90mm Width), termination style Gull Wing.

Datasheet Request a Quote

In Stock: 6,793

Tiered Pricing USD
1+ $2.9200 —
5+ $2.6000 -11%
10+ $2.4830 -15%
25+ $2.3432 -20%
50+ $2.2478 -23%
100+ $2.1606 -26%
500+ $1.9849 -32%
1,000+ $1.9195 -34% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringAngle
TechnologyMagnetoresistive
Rotation Angle - Electrical, Mechanical0° ~ 180°
Linear Range-
OutputAnalog Voltage
Output SignalCosine, Sine
Actuator TypeExternal Magnet, Not Included
Linearity±0.1°
Resistance-
Resistance Tolerance-
Voltage - Supply3.3V
Mounting TypeSurface Mount
Termination StyleGull Wing
Operating Temperature-
Package / Case16-TSSOP (0.154", 3.90mm Width)
Supplier Device PackagePG-TDSO-16-1
