TLE5014SP16E0002XUMA1

In Stock: 255

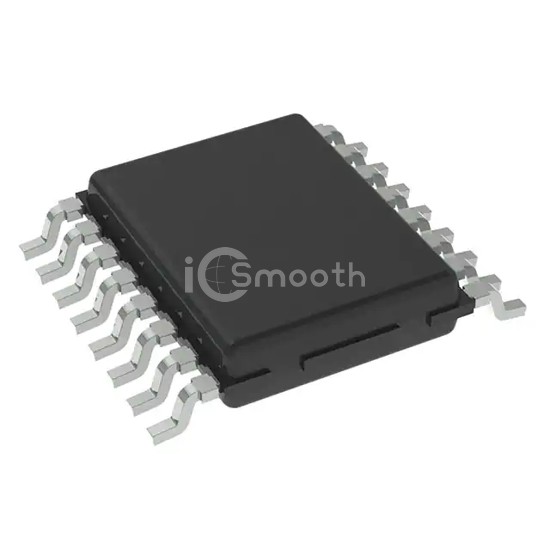

TLE5014SP16E0002XUMA1 - Infineon Technologies - Position Sensors - Angle, Linear Position Measuring
REF: TLE5014SP16E0002XUMA1 Infineon Technologies
TLE5014SP16E0002XUMA1

Infineon Technologies

GMR-BASED ANGLE SENSOR

TLE5014SP16E0002XUMA1 is a Position Sensors - Angle, Linear Position Measuring manufactured by Infineon Technologies. GMR-BASED ANGLE SENSOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 3V ~ 5.5V, package / case 16-TSSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 255

Tiered Pricing USD
1+ $4.6700 —
5+ $4.1920 -10%
10+ $4.0140 -14%
25+ $3.8004 -19%
50+ $3.6548 -22%
100+ $3.5211 -25% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringAngle
TechnologyMagnetoresistive
Rotation Angle - Electrical, Mechanical0° ~ 360°, Continuous
Linear Range-
OutputWheatstone Bridge
Output SignalCosine, Sine
Actuator TypeExternal Magnet, Not Included
Linearity-
Resistance-
Resistance Tolerance-
Voltage - Supply3V ~ 5.5V
Mounting TypeSurface Mount
Termination StyleGull Wing
Operating Temperature-40°C ~ 125°C (TA)
Package / Case16-TSSOP (0.154", 3.90mm Width)
Supplier Device PackagePG-TDSO-16-1
