TLE5009A16E1210XUMA1

In Stock: 1,400

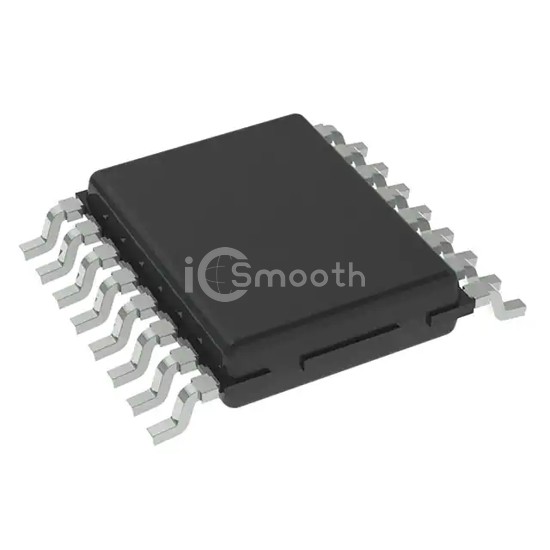

TLE5009A16E1210XUMA1 - Infineon Technologies - Position Sensors - Angle, Linear Position Measuring
REF: TLE5009A16E1210XUMA1 Infineon Technologies
TLE5009A16E1210XUMA1

Infineon Technologies

IC HALL SENSOR LINEAR TDSO-16

TLE5009A16E1210XUMA1 is a Position Sensors - Angle, Linear Position Measuring manufactured by Infineon Technologies. IC HALL SENSOR LINEAR TDSO-16. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 3V ~ 3.6V, package / case 16-TSSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 1,400

Tiered Pricing USD
1+ $3.9500 —
5+ $3.5340 -11%
10+ $3.3810 -14%
25+ $3.1976 -19%
50+ $3.0722 -22%
100+ $2.9573 -25%
500+ $2.7262 -31%
1,000+ $2.6402 -33% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringAngle
TechnologyMagnetoresistive
Rotation Angle - Electrical, Mechanical0° ~ 360°, Continuous
Linear Range-
OutputAnalog Voltage
Output SignalCosine, Sine
Actuator TypeExternal Magnet, Not Included
Linearity-
Resistance-
Resistance Tolerance-
Voltage - Supply3V ~ 3.6V
Mounting TypeSurface Mount
Termination StyleGull Wing
Operating Temperature-40°C ~ 125°C
Package / Case16-TSSOP (0.154", 3.90mm Width)
Supplier Device PackagePG-TDSO-16-1
