TLE4959CHAMA1

In Stock: 1,656

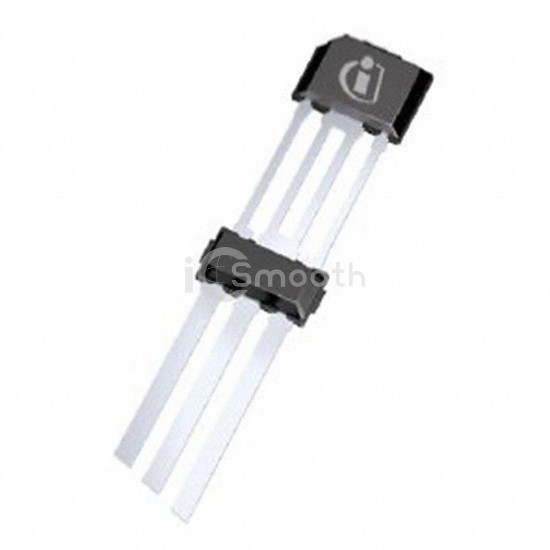

TLE4959CHAMA1 - Infineon Technologies - Position Sensors - Angle, Linear Position Measuring
REF: TLE4959CHAMA1 Infineon Technologies
TLE4959CHAMA1

Infineon Technologies

SENSOR ROTARY PC PIN

TLE4959CHAMA1 is a Position Sensors - Angle, Linear Position Measuring manufactured by Infineon Technologies. SENSOR ROTARY PC PIN. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), voltage - supply 4V ~ 16V, package / case 3-SIP Module.

Datasheet Request a Quote

In Stock: 1,656

Tiered Pricing USD
1,500+ $1.8338 —
3,000+ $1.7780 -3%
4,500+ $1.7476 -5% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringLinear, Rotary Position
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical-
Linear Range-
OutputAnalog Voltage, PWM
Output Signal-
Actuator TypeExternal Magnet, Not Included
Linearity-
Resistance-
Resistance Tolerance-
Voltage - Supply4V ~ 16V
Mounting TypeThrough Hole
Termination StylePC Pin
Operating Temperature-40°C ~ 175°C (TJ)
Package / Case3-SIP Module
Supplier Device PackagePG-SSO-3-52
