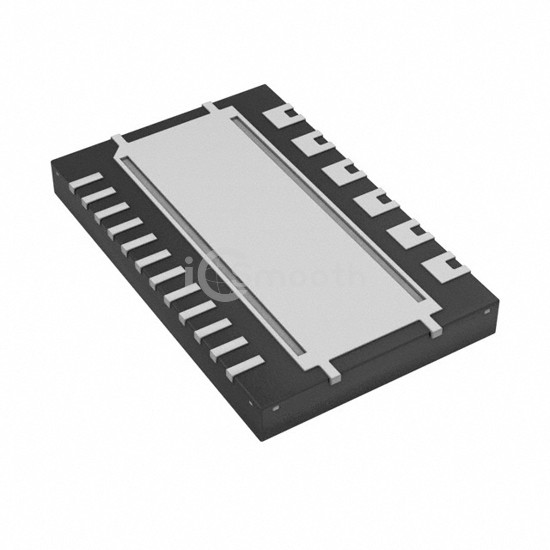

Name: BTS56033LBBAUMA1
Brand: Infineon Technologies
SKU: BTS56033LBBAUMA1
Availability: InStock

REF: BTS56033LBBAUMA1 Infineon Technologies

BTS56033LBBAUMA1

IC PWR SWITCH N-CHAN 2:3 TSON-24

BTS56033LBBAUMA1 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Infineon Technologies. IC PWR SWITCH N-CHAN 2:3 TSON-24. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 3.8V ~ 5.5V, package / case 24-PowerTDFN.

Datasheet Request a Quote

In Stock: 5,404

Specifications

18 parameters

Product Status	Discontinued at Digi-Key
Switch Type	General Purpose
Number of Outputs	6
Ratio - Input:Output	2:3
Output Configuration	High Side
Output Type	N-Channel
Interface	SPI
Voltage - Load	5.5V ~ 28V
Voltage - Supply (Vcc/Vdd)	3.8V ~ 5.5V

Current - Output (Max)	-
Rds On (Typ)	39mOhm, 110mOhm
Input Type	-
Features	Slew Rate Controlled
Fault Protection	Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TSON-24-3
Package / Case	24-PowerTDFN
