Name: BTS5240LNT
Brand: Infineon Technologies
SKU: BTS5240LNT
Availability: InStock

REF: BTS5240LNT Infineon Technologies

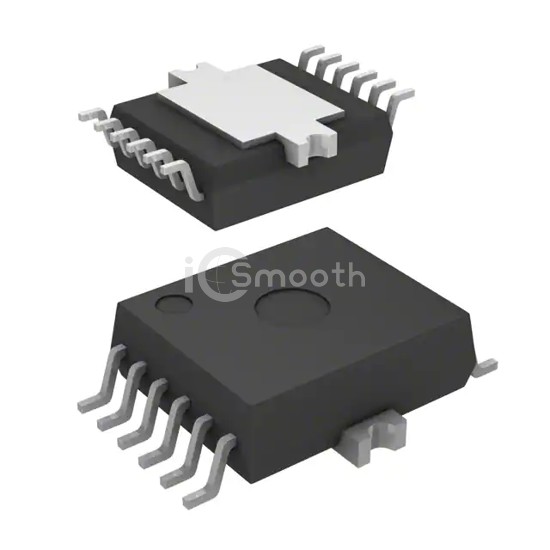

BTS5240LNT

IC PWR SWITCH N-CHAN 1:1 DSO-12

BTS5240LNT is a PMIC - Power Distribution Switches, Load Drivers manufactured by Infineon Technologies. IC PWR SWITCH N-CHAN 1:1 DSO-12. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 12-BSOP (0.295", 7.50mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 3,404

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	2
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	4.5V ~ 28V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	5.5A
Rds On (Typ)	21mOhm
Input Type	Non-Inverting
Features	-
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-DSO-12-2
Package / Case	12-BSOP (0.295", 7.50mm Width) Exposed Pad
