Name: BTS133TCBUMA1
Brand: Infineon Technologies
SKU: BTS133TCBUMA1
Price: 3.27 USD
Availability: InStock

REF: BTS133TCBUMA1 Infineon Technologies

BTS133TCBUMA1

Infineon Technologies

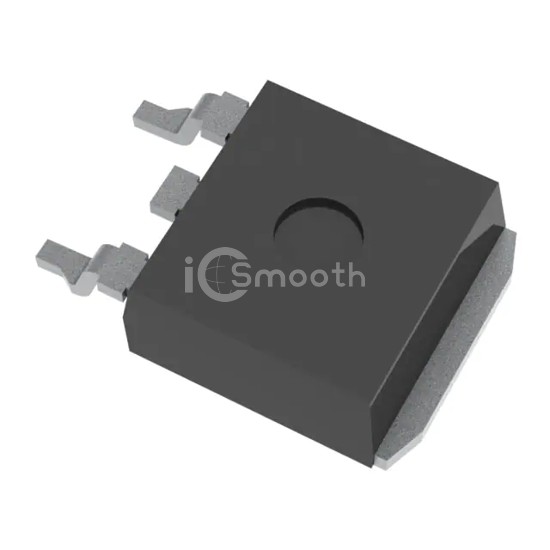

IC PWR SWITCH N-CHAN 1:1 TO263-3

BTS133TCBUMA1 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Infineon Technologies. IC PWR SWITCH N-CHAN 1:1 TO263-3. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 5,971

Specifications

18 parameters

Product Status	Not For New Designs
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	Low Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	60V (Max)
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	7A
Rds On (Typ)	40mOhm
Input Type	Non-Inverting
Features	-
Fault Protection	Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TO263-3-2
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
