Name: AUIR3320S
Brand: Infineon Technologies
SKU: AUIR3320S
Availability: InStock

REF: AUIR3320S Infineon Technologies

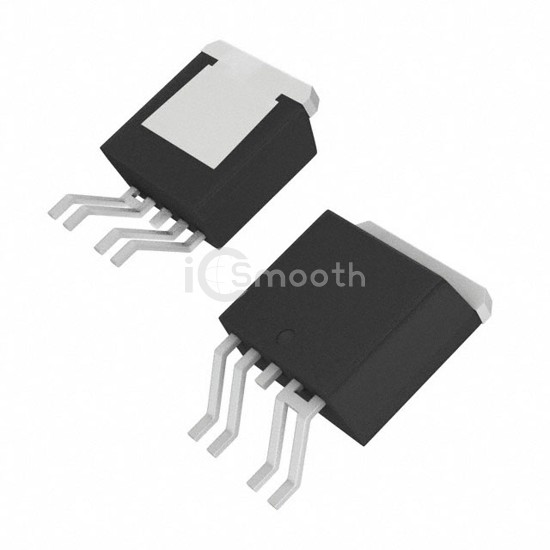

AUIR3320S

IC PWR SWITCH N-CHAN 1:1 D2PAK

AUIR3320S is a PMIC - Power Distribution Switches, Load Drivers manufactured by Infineon Technologies. IC PWR SWITCH N-CHAN 1:1 D2PAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case TO-263-5, D²Pak (4 Leads + Tab) Variant.

Datasheet Request a Quote

In Stock: 1,556

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	6V ~ 26V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	45A
Rds On (Typ)	3.3mOhm
Input Type	Non-Inverting
Features	-
Fault Protection	Current Limiting (Adjustable), Over Temperature
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK
Package / Case	TO-263-5, D²Pak (4 Leads + Tab) Variant
