Name: AUIR3313
Brand: Infineon Technologies
SKU: AUIR3313
Availability: InStock

REF: AUIR3313 Infineon Technologies

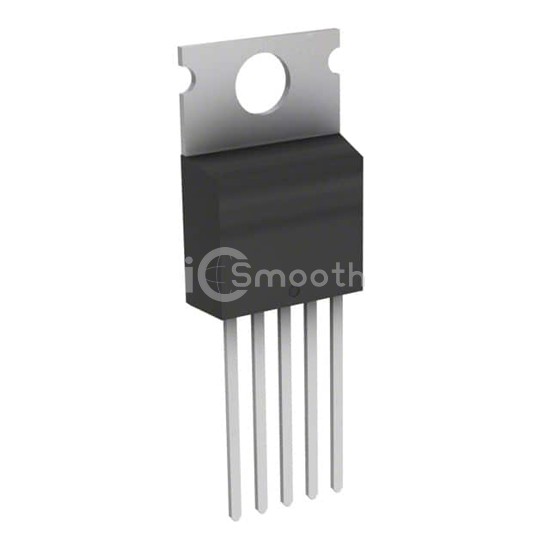

AUIR3313

IC PWR DRIVER N-CHAN 1:1 TO220-5

AUIR3313 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Infineon Technologies. IC PWR DRIVER N-CHAN 1:1 TO220-5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case TO-220-5.

Datasheet Request a Quote

In Stock: 9,116

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	6V ~ 32V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	23A
Rds On (Typ)	5.5mOhm
Input Type	Non-Inverting
Features	-
Fault Protection	Current Limiting (Adjustable), Over Temperature
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-5
Package / Case	TO-220-5
