Name: HMC1501-TR
Brand: Honeywell Aerospace
SKU: HMC1501-TR
Price: 2.82 USD
Availability: InStock

REF: HMC1501-TR Honeywell Aerospace

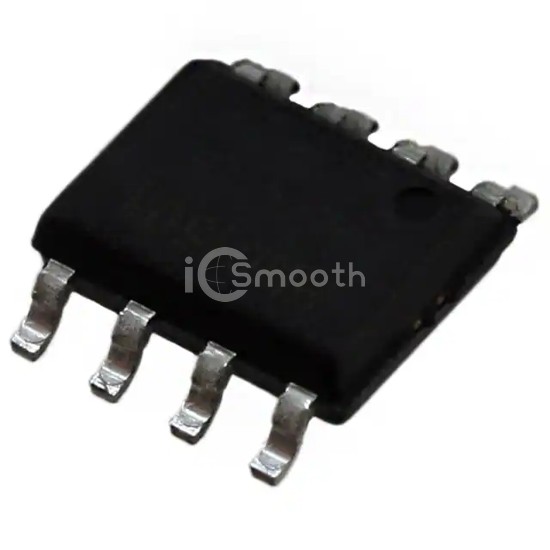

HMC1501-TR

SENSOR ANGLE 90DEG 8MM SMD

HMC1501-TR is a Position Sensors - Angle, Linear Position Measuring manufactured by Honeywell Aerospace. SENSOR ANGLE 90DEG 8MM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1V ~ 25V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 2,902

Tiered Pricing USD

1+ $2.8200 —

5+ $2.5140 -11%

10+ $2.4000 -15%

25+ $2.2644 -20%

50+ $2.1718 -23%

100+ $2.0871 -26%

500+ $1.9166 -32% BEST

Specifications

17 parameters

Product Status	Active
For Measuring	Angle, Linear, Rotary
Technology	Magnetoresistive
Rotation Angle - Electrical, Mechanical	90° (±45°)
Linear Range	0 ~ 8.00mm (0 ~ 0.31")
Output	Wheatstone Bridge
Output Signal	-
Actuator Type	External Magnet, Not Included
Linearity	-

Resistance	6.5 kOhms
Resistance Tolerance	-
Voltage - Supply	1V ~ 25V
Mounting Type	Surface Mount
Termination Style	Gull Wing
Operating Temperature	-40°C ~ 125°C
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
