Name: HI-8202PCIF
Brand: Holt Integrated Circuits Inc.
SKU: HI-8202PCIF
Price: 7.16 USD
Availability: InStock

REF: HI-8202PCIF Holt Integrated Circuits Inc.

HI-8202PCIF

Holt Integrated Circuits Inc.

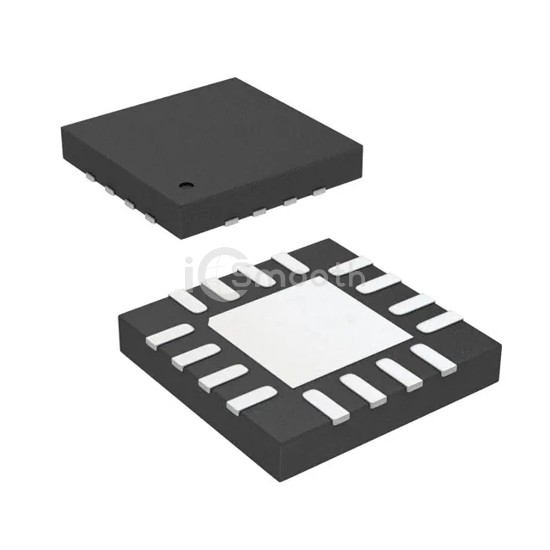

IC SWITCH QUAD SPST 16-CSP

HI-8202PCIF is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Holt Integrated Circuits Inc.. IC SWITCH QUAD SPST 16-CSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WQFN Exposed Pad, CSP, number of circuits 4.

Datasheet Request a Quote

In Stock: 2,521

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NO/NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	10Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	3V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	250ns, 150ns

-3db Bandwidth	-
Charge Injection	-20pC
Channel Capacitance (CS(off), CD(off))	15pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WQFN Exposed Pad, CSP
Supplier Device Package	16-CSP (5x5)
