Name: IRFU9220
Brand: Harris Corporation
SKU: IRFU9220
Availability: InStock

REF: IRFU9220 Harris Corporation

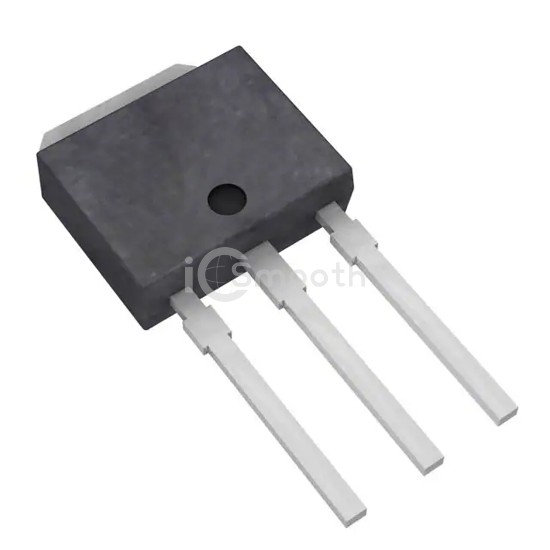

IRFU9220

MOSFET P-CH 200V 3.6A TO251AA

IRFU9220 is a Transistors - FETs, MOSFETs - Single manufactured by Harris Corporation. MOSFET P-CH 200V 3.6A TO251AA. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 1,012

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	3.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.5Ohm @ 2.2A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	20 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	340 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 42W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-251AA
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
