Name: IRF230
Brand: Harris Corporation
SKU: IRF230
Availability: InStock

REF: IRF230 Harris Corporation

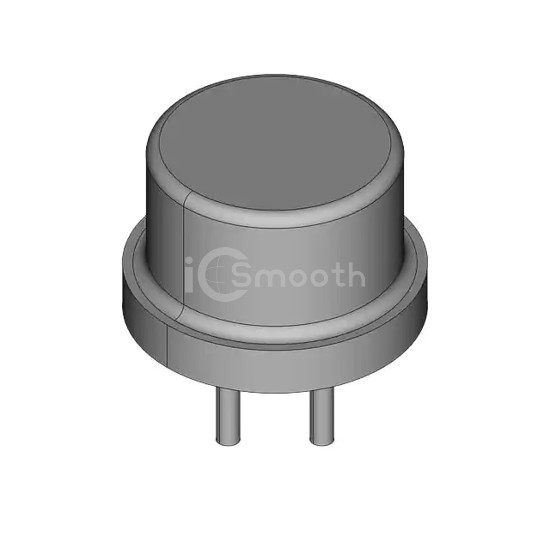

IRF230

MOSFET N-CH 200V 9A TO3

IRF230 is a Transistors - FETs, MOSFETs - Single manufactured by Harris Corporation. MOSFET N-CH 200V 9A TO3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-204AA, TO-3.

Datasheet Request a Quote

In Stock: 8,625

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	400mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	30 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	600 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	75W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-3
Package / Case	TO-204AA, TO-3
