Name: HI9P0507-5
Brand: Harris Corporation
SKU: HI9P0507-5
Availability: InStock

REF: HI9P0507-5 Harris Corporation

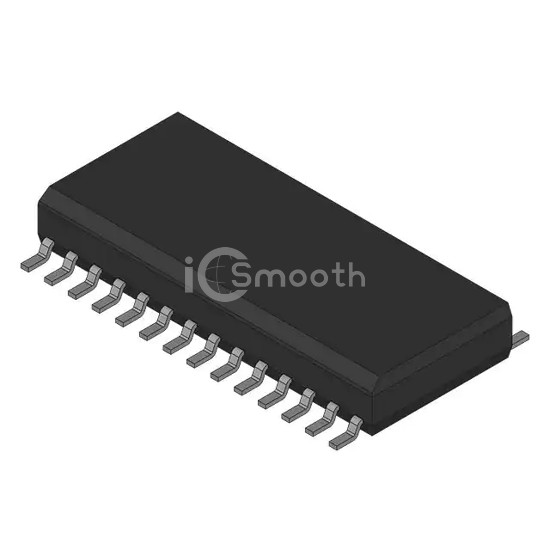

HI9P0507-5

4-CHANNEL ANALOG MUX

HI9P0507-5 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Harris Corporation. 4-CHANNEL ANALOG MUX. Key specifications: mounting type Surface Mount, package / case 28-SOIC (0.295", 7.50mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 3,288

Specifications

18 parameters

Product Status	Active
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	2
On-State Resistance (Max)	400Ohm
Channel-to-Channel Matching (ΔRon)	20Ohm
Voltage - Supply, Single (V+)	±15V
Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	250ns (Typ), 250ns (Typ)

-3db Bandwidth	-
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	10pF, 52pF
Current - Leakage (IS(off)) (Max)	30pA (Typ)
Crosstalk	-
Operating Temperature	-
Mounting Type	Surface Mount
Package / Case	28-SOIC (0.295", 7.50mm Width)
Supplier Device Package	28-SOIC
